1.Summary:

1030nm 200mW 100KHz DFB Papilio Laser Diode est summus potentia, linea longitudinis DFB papilionum involucrum laser diode angustum, Late ad fontes seminandos pro laserariis fibris vel ad mensuras spectrales subtilitatem.

2. Features:

• 200mW High output power;

• Infra 100kHz lineola angusta;

• PM fibra Vltra 18dB Maximum PER;

• 14PIN Papilio involucrum;

• Internus thermoelectricae sentinae caloris et monitor photodiodae;

• Agri-probata summa fides.

Reliability:Telcordia GR-468. RoHS

3. Applications:

• Semen fons lasers;

• Spectroscopia;

• Sensum opticum.

4. Absoluta Maximum Ratings

Parameter	Symbolum	Min.	Maximilianus.	Unitas
LD Reverse current	IR	-	2	V
LD Deinceps current	SI*	-	500	ma
MPD Reverse voltage	VMPD	-	20	V
Thermoelectric frigidior Thracam voltage	VTEC	-	4.8	V
Thermoelectric frigidior Thracam current	ITEC	-	2.5	A
Causa operating temperatus	TC	-45	70	℃
Repono temperatus	TSTG	-40	85	℃
At humiditas	-	5	85	%RH
Electro static missionem (ESD)	VESD	-	500	V
Plumbum solidatorium temperatus	STEMP	-	260	℃
Ducere solidatorium tempore	STIME		10	sec

5. Electro-Optical Characteres (25℃ caliditas laser);

Parameter	Symbolum	Conditio	Min.	Typ.	Maximilianus.	Unitas
Centrum adsum	λ	TL= 15～35℃ CW	1028	1030	1032	nm
Optical output potentia	PO	TL=25℃	-	200	-	mW*
Limen current	ITH'	TL=25℃	-	45	70	ma
Operans voltage	VOP	POP= 200mW(CW)	-	-	2.5	V
Operans current	Iop	POP= 200mW(CW)	-	300	500	ma
Linewidth latitudine	λ	-	-	30	100	KHz
Ratio modus suppressio latus	SMSR	-	-	40	-	dB*
Ratio polarization exstinctio	ER	-	18	-	-	dB*
Temp. adsum coefficientem	λ/ΔT	-	-	0.08	-	nm/
MPD Responsivity	IMON/POP	@-5V bias voltage	1	-	30	μA/mW
Thermistor resistentia	RTH	-	9.5	10	10.5	KΩ

6. Fibra Optica Specificationes:

Morbi laoreet	Descriptio
Genus fibra	PM980
Pigtail genus	900μm tubus emissus
Pigtail longitudo	1.2±0.1m
Connector type	FC/APC

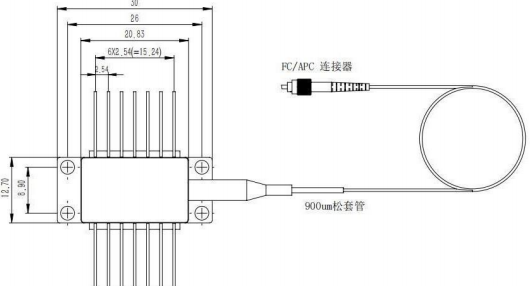

7. Sarcina tractionem & PIN-OUT Definition(Unit: mm);

1030nm 200mW 100KHz DFB Butterfly Laser Diode

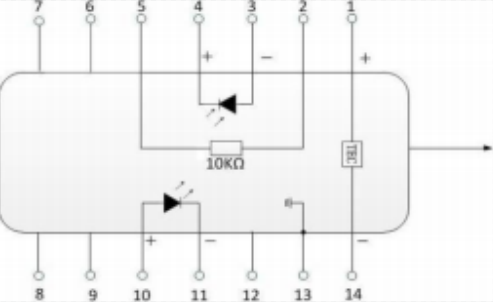

Typus 2

PIN	Descriptio	PIN	Descriptio
1	TEC(+)	14	TEC(-)
2	Thermistor	13	Causa terrae
3	PD Monitor Anode (-)	12	NC
4	PD Monitor Cathode (+)	11	Laser Cathode (-)
5	Thermistor	10	Laser Anode (+)
6	NC	9	NC
7	NC	8	NC
