1064nm 200mW DFB Papilio Laser Diode est laser linea-lineatilis cum lineola 100kHz et output potentiae usque ad 200mW, quae late in fontibus laseris et lidar seminis fibrarum adhibetur.

1064nm 200mW DFB Papilio Laser Diode Features

200mW High output power;

Ager altae probatae constantiae;

Hi1060 SM vel PM980-HP fibra pigtail;

14PIN Papilio involucrum;

Internum thermoelectricae heatpump et monitor photodiodae;

Reliability:Telcordia GR-468. RoHS

1064nm 200mW DFB Papilio Applications Laser Diode:

Semen fons lasers;

Spectroscopy;

Sensus optical.

Maximum Ratings

Parameter	Symbolum	Min.	Maximilianus.	Unitas
Maximum operating voltage	V	-	2.5	V
Maximum operating current	I	-	500	ma
MPD Reverse voltage	VMPD	-	20	V
Thermoelectric frigidior Thracam voltage	VTEC	-	4.8	V
Thermoelectric frigidior Thracam current	ITEC	-	1.8	A
Causa operating temperatus	TC	-20	60	℃
Repono temperatus	TSTG	-40	85	℃
At humiditas	-	5	85	%RH
Electro static missionem (ESD)	VESD	-	500	V
Plumbum solidatorium temperatus	STEMP	-	260	℃
Ducere solidatorium tempore	STIME		10	sec

Electro-Optical Characteres (25℃ laser temperatus);

Parameter	Symbolum	Conditio	Min.	Typ.	Maximilianus.	Unitas
Centrum adsum	λ	TL=15～35℃ CW	1062	1064	1066	nm
Optical output potentia	PO	TL=25℃	-	200	-	mW*
Limen current	ITH'	TL=25℃	-	45	70	ma
Operans voltage	VOP	IOP= 200mA(CW)	-	-	2.5	V
Operans current	Iop	IOP= 200mA(CW)	-	300	500	ma
-3dB latitudinis Spectralis	λ	-	-	0.03	-	nm

Ratio modus suppressio latus	SMSR	-	-	40	-	dB*
Ratio polarization exstinctio	ER	-	18	-	-	dB*
Temp. adsum coefficientem	λ/ΔT	-	-	0.08	-	nm/
MPD Responsivity	IMON/POP	@-5V bias voltage	1	-	30	μA/mW
Thermistor resistentia	RTH	-	9.5	10	10.5	KΩ

Fibra optica Specificationes:

Morbi laoreet	Descriptio
Genus fibra	Hi1060 aut PM980
Pigtail genus	900μm tubus emissus
Pigtail longitudo	1.0±0.1m
Connector type	FC/APC

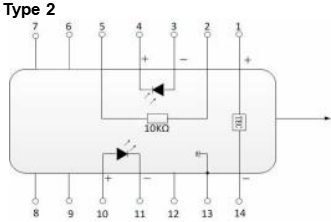

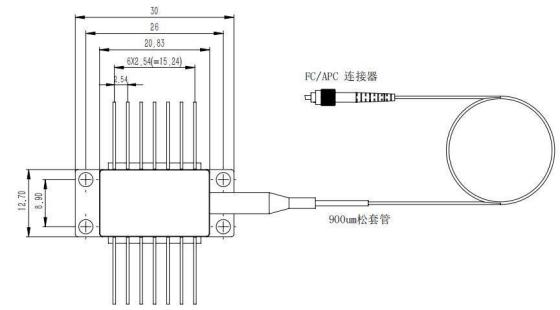

Sarcina tractus & PIN-E Definition (Unit: mm);

PIN	Descriptio	PIN	Descriptio
1	TEC(+)	14	TEC(-)
2	Thermistor	13	Causa terrae
3	PD Monitor Anode (-)	12	NC
4	PD Monitor Cathode (+)	11	Laser Cathode (-)
5	Thermistor	10	Laser Anode (+)
6	NC	9	NC
7	NC	8	NC

Typical Imaginis Optica

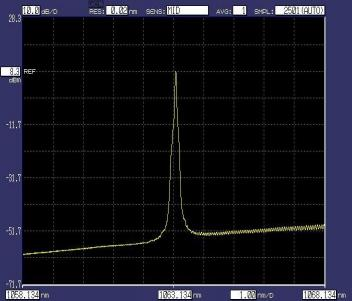

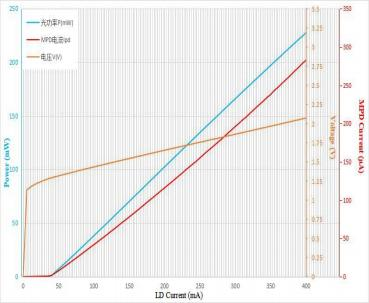

Spectrum (Pop=200mW,25℃) Light-Current-Voltage Curves (25℃)

Informationes iussis:

BFLD	-XXXX	-X	XX	-XX	X
Genus laser	Necem	Output potentia	Genus fibra	Connector	ACUS EXTRA
DFB	1064: 1064nm	2H: 200mW	SM: Hi1060PM : PM980	FA: FC/APCOther	NULL: 14PIN Type II customized (10PIN)

E.g.:BFLD-1060-2HSM-FA (Informatio Ordinis: 1064nm DFB Papilio laser diode cum 200mW output potentiae, et SM Hi1060 fibra cum FC/APC iungo, PIN-OUT est Type 2).
