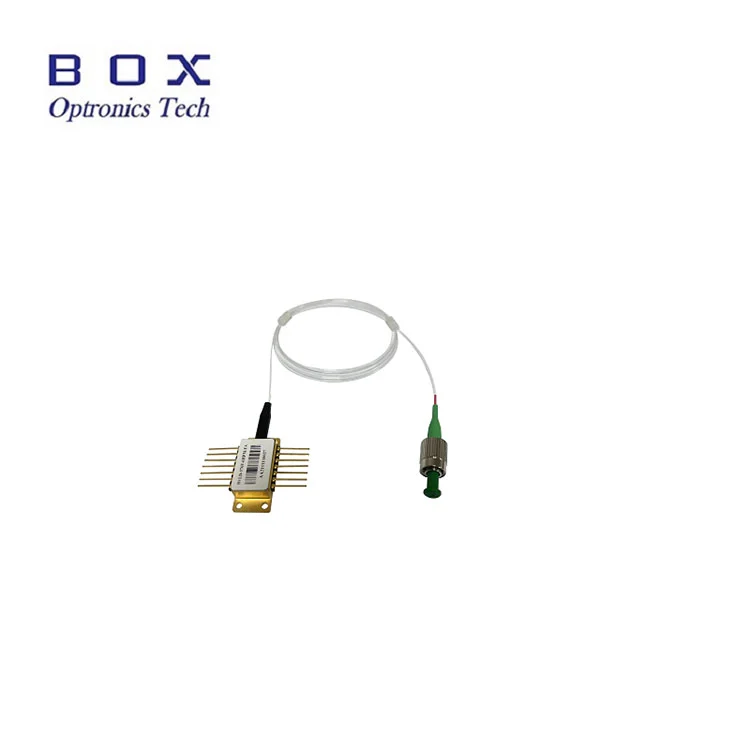

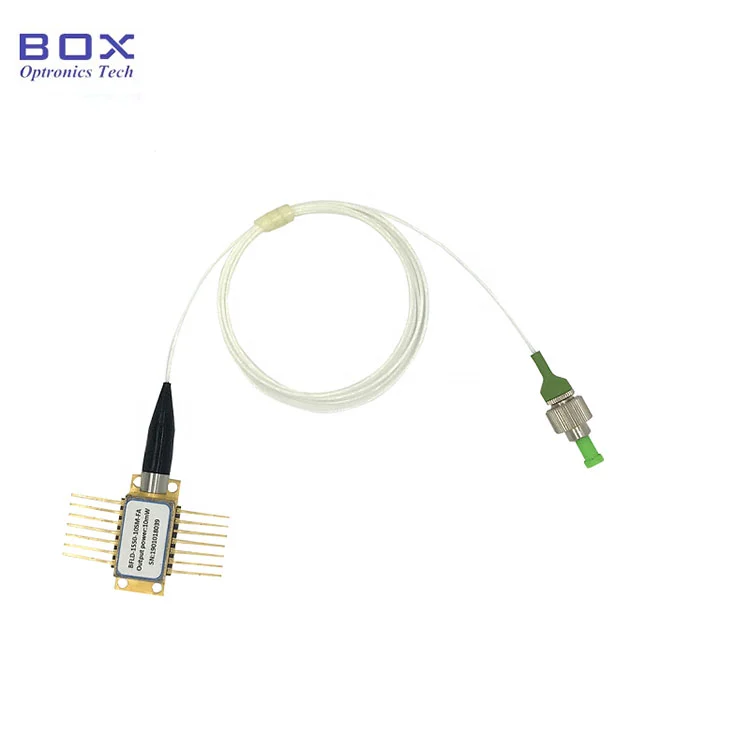

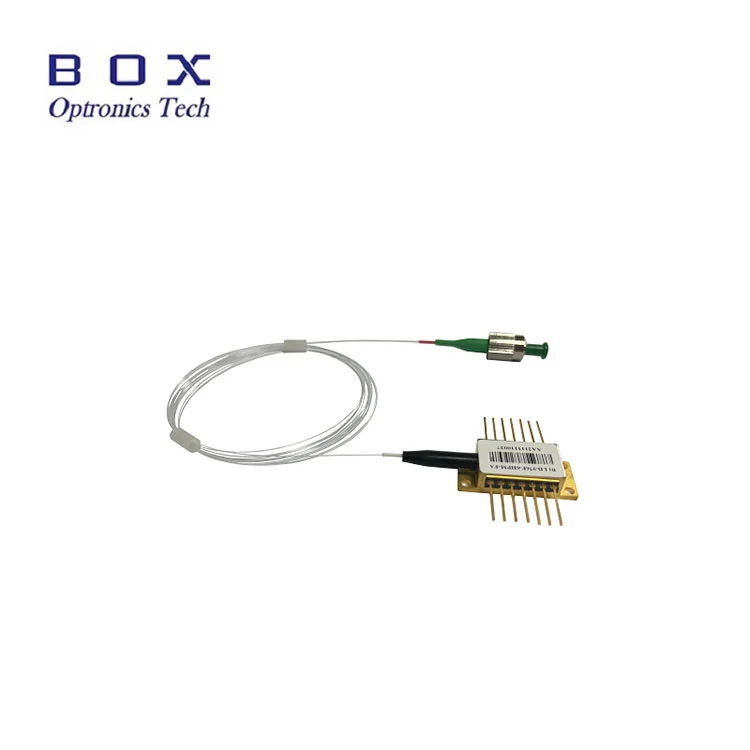

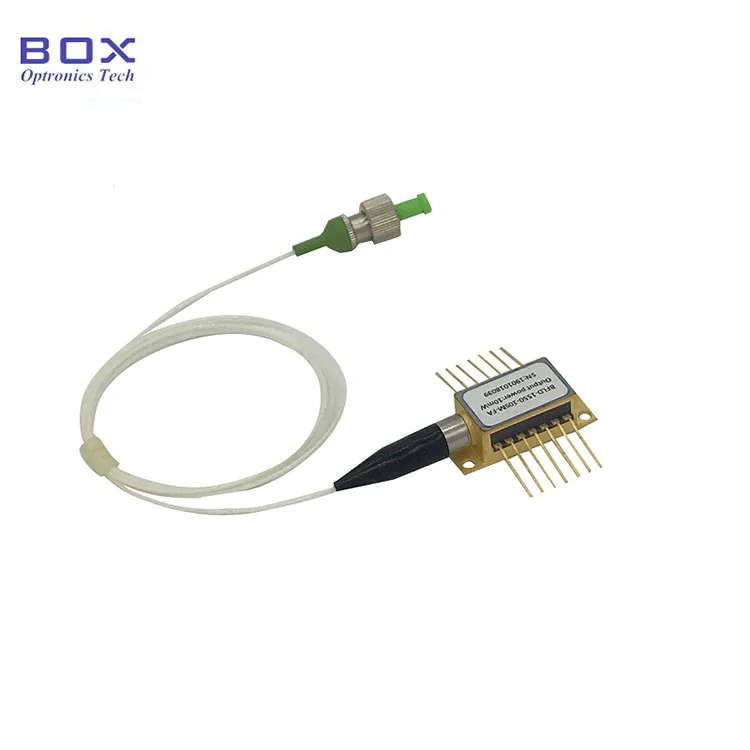

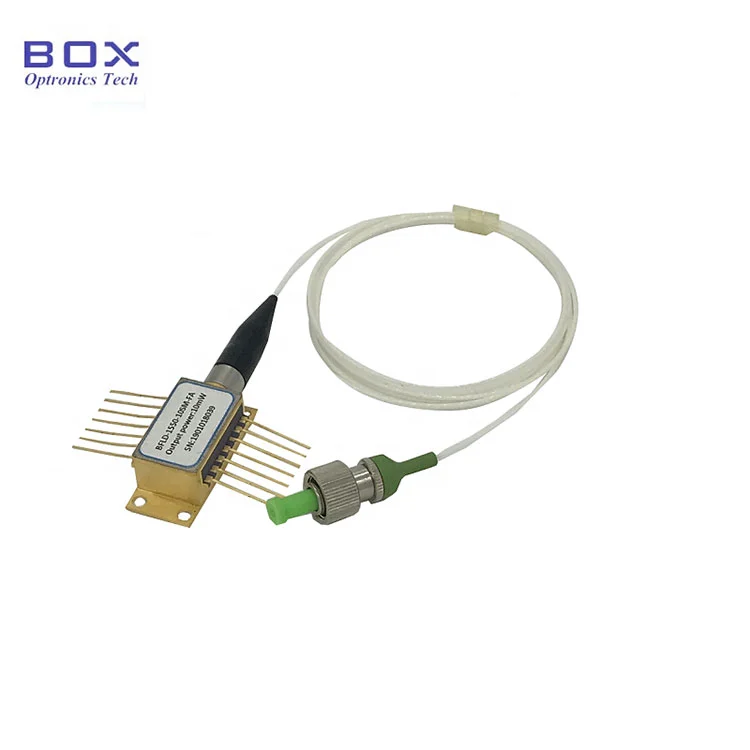

Box optronics providet 1064nm infrared DFB laser diode in 14pin BTF Package. Vestibulum offerre ad 200mw ex ipso firmum CW euismod. Sm fibra et PM Fiber Pigtail sunt libitum. Et aedificavit in TEC coolers et Monitor PDS. Modus suppressionem Ratio est Modus-Modus> 40DB. Sunt frequentius usus est in optical sentiendi et sicut semen fontem pro lasers.
Box optronics providet 1064nm infrared DFB laser diode in 14pin BTF Package. Vestibulum offerre ad 200mw ex ipso firmum CW euismod. Sm fibra et PM Fiber Pigtail sunt libitum. Et aedificavit in TEC coolers et Monitor PDS. Modus suppressionem Ratio est Modus-Modus> 40DB. Sunt frequentius usus est in optical sentiendi et sicut semen fontem pro lasers.
● 200mw excelsum output potestatem;
● Field-probata princeps reliability;
● HI1060 PM PM980-HP fibra Pigtail;

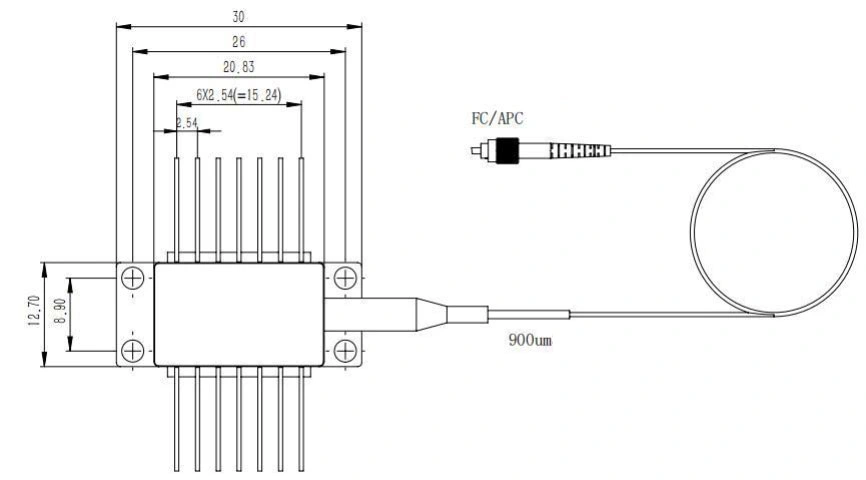

● 14pin papfus Package;

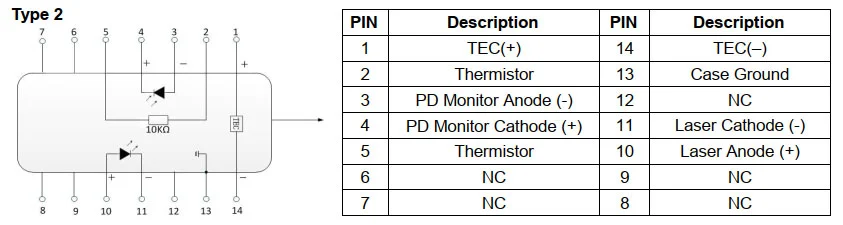

● internum thermoelectric Heatpump et Monitor Photodiode;
● Reliability: Telcordia gr-CDLXVIII. Rohs
● semen fontem lasers;
● Spectroscopy;
● optical sensu.
| Parameter | Symbolum | Conditio | Min. | Typ. | Max. | Unitas |
| Centrum adsum | Lc | TL = XV ~ XXXV ℃ qu | 1062 | 1064 | 1066 | NM |
| Optical output potestatem | Post | TL = XXV ℃ | - | 200 | - | MW |
| Limina current | ITH | TL = XXV ℃ | - | 45 | 70 | MA |
| Operating voltage | GTC | Ioop = 200MA (C.) | - | - | 2.5 | V |
| Operating current | Ioop | Ioop = 200MA (C.) | - | 300 | 500 | MA |
| -3DB spectris width | Dl | - | - | 0.03 | - | NM |
| Modus Suppressio Ratio | SMSR | - | - | 40 | - | db |
| Polarization Exstinction Ratio | Est | - | 18 | - | - | db |
| Temp. imitari coefficientem | DL / DT | - | - | 0.08 | - | N. / ℃ |
| MPD RESPICIO | Imon / Pop | @ -5V bias intentione | 1 | - | 30 | μa / mw |
| Thermistor resistentia | Rth | - | 9.5 | 10 | 10.5 | Kω |
Omnes products sunt probata ante shipping sunt;
Omnes products habere I annis warantum. (Post qualis pignus tempus coepit arguere oportet sustentationem Service feodo.)
Nos appreciate vestri negotium et offer an instant VII dies reditus consilium. (VII dies post accipiens items);
Si items vos emo ex copia nostra non sunt perfecta qualitas, id est non operari electronice ad artifices cubits, simpliciter revertetur ad nos pro replacement aut refugium;
Si items sunt defectiva, obsecro certiorem nos intra III diebus partus;
Quilibet items oportet rediit in originali conditione ad temperandum ad refugium aut postea;
Emptor est reus omnes naves cost.
Q: Quid pigtail fibra potes providere?
A: SM: Hi MLX et PM PM980. Si alii fibris non opus, placere reprehendo nobiscum.
Q: Non vis a 14pin tellus.
A: 10pin est customiaable.
