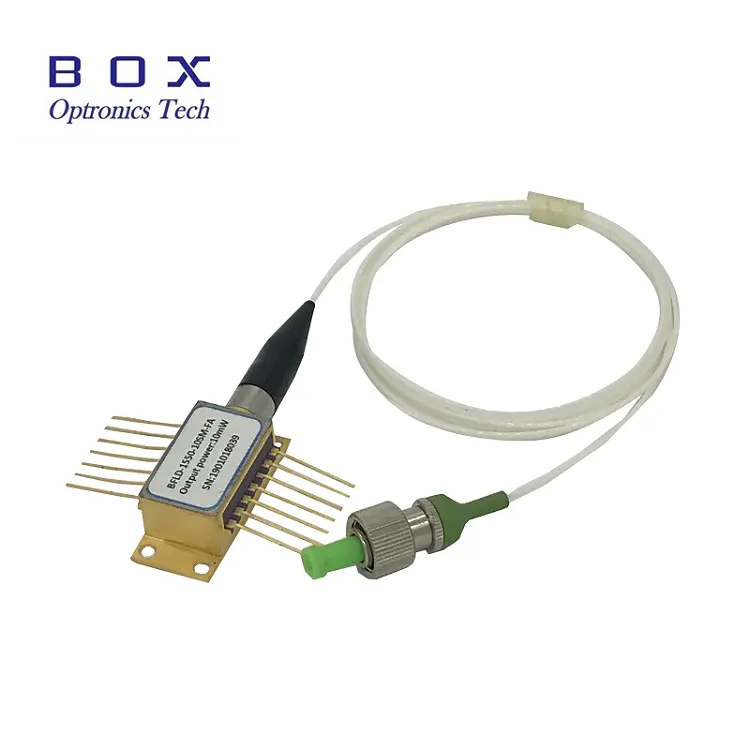

1532.68nm 10mW DFB Laser Diode pro C2H2 acetylene detectionis moduli sumptus efficax est, valde cohaerens laser diode. DFB laser diode chip in an industria vexillum hermetically obsignatum 14PIN papilio sarcina cum TEC, isolator et PD aedificatum est.
1532.68nm 10mW DFB Laser Diode pro C2h2 acetylene detectionis moduli sumptus efficax est, valde cohaerens laser diode. DFB laser diode chip in an industria vexillum hermetically obsignatum 14PIN papilio sarcina cum TEC, isolator et PD aedificatum est.
Summus perficientur, multiquantum bene distribuit-feedback (DFB) laser;
Industry-standard 14PIN papilio sarcina;
Instructa in TEC et optical isolator.
Fibre sensoriis optici ;
Sensus acetylene;
Fontes laser.
| Parameter | Symbolum | Conditio | Min. | Typ. | Maximilianus. | Unitas |
| Centrum adsum | λ | TL=15～35℃ CW | 1531.68 | 1532.68 | 1533.68 | nm |
| Optical output potentia | PO | - | 10 | - | - | mW* |
| Limen current | ITH' | - | - | - | 20 | ma |
| Operans current | IOP | PO = 10 mW (CW) | - | - | 100 | ma |
| Spectrale linewidth | LW | - | - | 10 | MHz | |
| Laser deinceps voltage | VF | CW output potentia 10mW | - | - | 2.5 | V |
| Monitor tenebris current | ID | - | - | - | 0.2 | uA* |
| Ratio-modus suppressio latus | SMSR | CW | 35 | 40 | - | V |
| Optical solitudo | - | 30 | - | - | dB* | |
| Thermistor resistentia | RTH | TL = 25℃ | 9.5 | 10 | 10.5 | KΩ |
| TEC Current | ITEC | TL = 25℃, TC = 70℃ | - | - | 1.5 | A |
| TEC Voltage | VTEC | TL = 25℃, TC = 70℃ | -2.5 | - | 3.5 | V |
| Necem temperatus coefficientis | λ/ΔT | TEC temperatus in 15℃ ad 35℃ | - | 0.09 | - | nm/ |
| Necem current coefficientis | λ/ΔΙ | - | - | 0.01 | - | nm/mA |

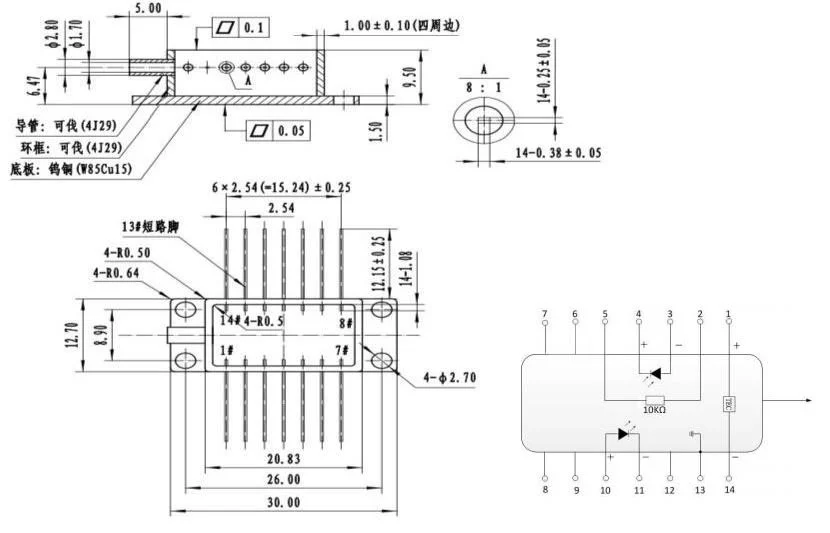

| PIN | Descriptio | PIN | Descriptio |
| 1 | Thermistor | 14 | NC |
| 2 | Thermistor | 13 | Laser Anode(+) |
| 3 | LD Cathode(-) | 12 | Laser Cathode(-) |
| 4 | PD Anode (+) | 11 | Laser Anode(+) |
| 5 | PD Cathode(-) | 10 | NC |
| 6 | TEC(+) | 9 | Causa terrae |
| 7 | TEC(- ) | 8 | Causa terrae |

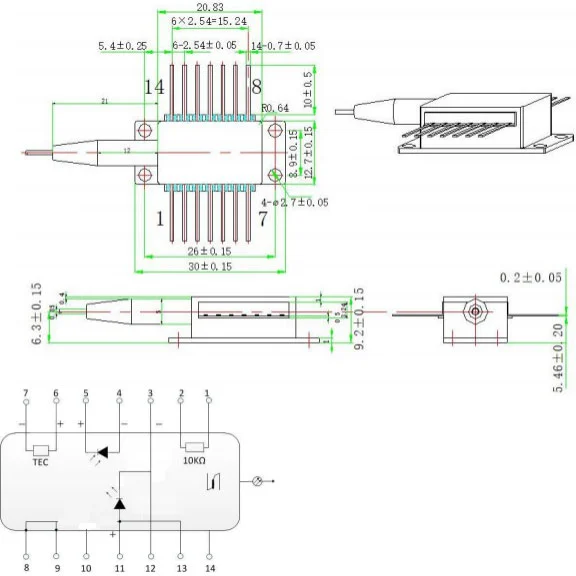

| PIN | Descriptio | PIN | Descriptio |
| 1 | TEC(+) | 14 | TEC(- ) |
| 2 | Thermistor | 13 | Causa terrae |
| 3 | PD Monitor Anode (-) | 12 | NC |
| 4 | PD Monitor Cathode (+) | 11 | Laser Cathode (-) |
| 5 | Thermistor | 10 | Laser Anode (+) |
| 6 | NC | 9 | NC |
| 7 | NC | 8 | NC |
All products have been tested before shipping out;
Omnes fructus 1-3 annos habent warantum.
Negotium tuum bene nos facimus, et consilium instanti offerimus 7 dierum. (7 dies post susceptionem omissa);
Si vasa quae ex nostro thesauro emo non sunt perfectae qualitatis, id est electronice ad specificationes fabricantes operari faciant, simpliciter ea nobis reddent ad substituendum vel refugium;
Si omissa sunt, quaeso certiorem nos intra III dies traditionis;
Quaelibet res in pristinum statum restitui debet ad vocandum refugium vel repositum;
Emptor reus est omnium navium emptarum.
Q: Habesne alia aequalitatem praesto?
A: Praebere possumus C band vel L band necem.
Q: Vtrum plus possit facere cum potestate?
A: 20mW unum libitum est.
