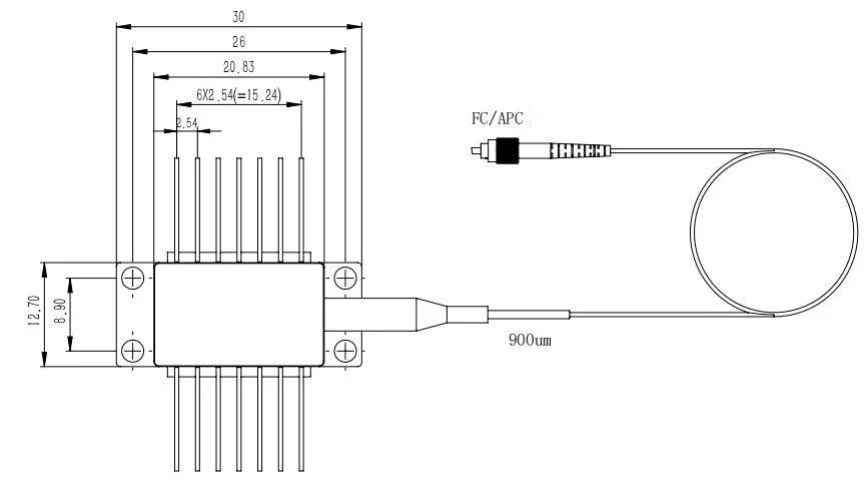

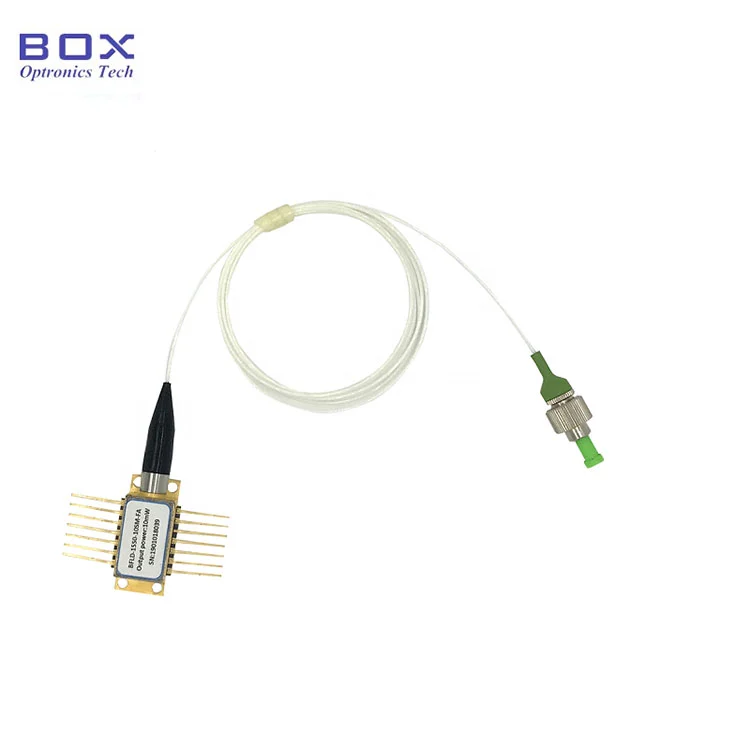

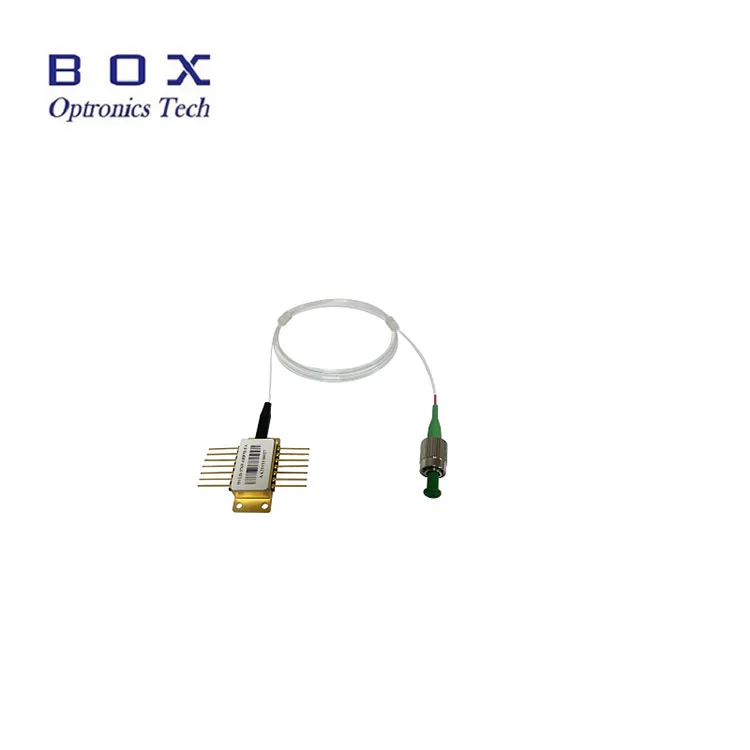

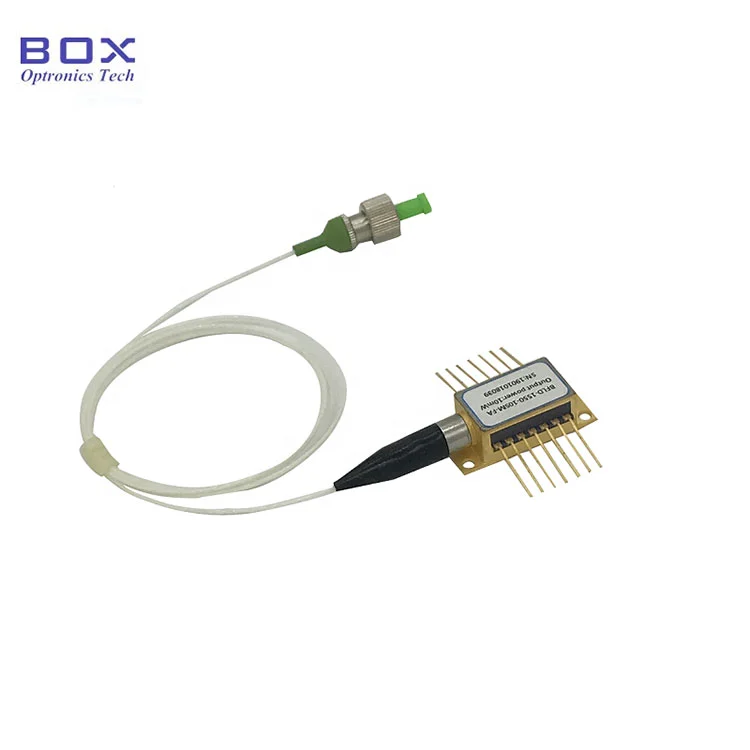

Box optronoms praebet 1550nm DFB anguste Linewidth laser Diode in 14pin BTF Package. His inventa offerentur ad 100mw ex ipso firmum CW euismod et Linewidth<100KHz. SM fiber and PM fiber pigtail are optional. They have built-in TEC coolers and monitor PDs. Side-mode suppression ratio is >40db.they're frequenter usus est in optical sentire et optical communications.
Box optronoms praebet 1550nm DFB anguste Linewidth laser Diode in 14pin BTF Package. Hae cogitationes offerre ad 100mw de ipso firmum CW euismod et Linewidth <100khz. Sm fibra et PM Fiber Pigtail sunt libitum. Et aedificavit in TEC coolers et Monitor PDS. Side-modus supprimrat Ratio est> 40db.they're frequenter usus est in optical sentire et optical communications.
● 1550nm DFB laser;
● angustus linewidth <100khz;
● 100mw excelsum output potestatem;
● aedificavit in TEC et Monitor PD;
● Reliability: Telcordia gr-CDLXVIII. Rohs
● LORDAR;
● Ventus radar;
● optical fibra sensu;
● cohaerens communicationis.
| Parameter | Symbolum | Conditio | Min. | Typ. | Max. | Unitas |
| Centrum adsum | Lc | TL = XV ~ XXXV ℃ qu | 1545 | 1550 | 1555 | NM |
| Optical output potestatem | Post | - | 100 | 150 | - | MW |
| Limina current | ITH | - | - | - | 50 | MA |
| Operating voltage | GTC | PO = 10mw (C.) | - | - | 2.5 | V |
| Operating current | Ioop | PO = 10mw (C.) | - | 650 | 800 | MA |
| Spectralis linewidth | Lw | Fwhm | - | - | 100 | Khz |
| MPD RESPICIO | Imon / Pop | - | 1 | - | 30 | μa / mw |
| Modus Suppressio Ratio | SMSR | CW | 40 | - | - | db |
| Segregatio | - | -10 |
40
|
-
|
-
|
db |
|
| TEC set temperatus | Ty | - | 15 | - | 35 | ℃ |
| Thermistor current | ITC | - | - | - | 0.5 | MA |
| Thermistor resistentia | Rth | TL = XXV ℃ | 9.5 | 10 | 10.5 | Kω |
| TEC current | Itec | TL = XXV ℃, TC = LXX ℃ | - | - | 1.5 | A |
| TEC voltage | Vtec | TL = XXV ℃, TC = LXX ℃ | - | - | 3.5 | V |
| TEC facultatem | Δt | TC = LXX ℃ | - | - | 50 | ℃ |
| Imitari, (EOL) | △ λ | Tabesus super XXV annos vita | - | - | ± 0.1 | NM |
| Unam temperatus coefficientem | DL / DT | TEC temperatus ad XV ℃ ad XXXV ℃ | - | 0.1 | - | N. / ℃ |
| Imitatur current modulation coefficientem | Itr | 200-800ma | 0.2 | - | 0.4 | GHz / MA |
Omnes products sunt probata ante shipping sunt;
Omnes products habere I annis warantum. (Post qualis pignus tempus coepit arguere oportet sustentationem Service feodo.)
Nos appreciate vestri negotium et offer an instant VII dies reditus consilium. (VII dies post accipiens items);
Si items vos emo ex copia nostra non sunt perfecta qualitas, id est non operari electronice ad artifices cubits, simpliciter revertetur ad nos pro replacement aut refugium;
Si items sunt defectiva, obsecro certiorem nos intra III diebus partus;
Quilibet items oportet rediit in originali conditione ad temperandum ad refugium aut postea;
Emptor est reus omnes naves cost.
Q: Quid latere - Modus suppressionem Ratio pervenire?
A: Suus 'major 40db. Si vos have altius requisita, placere contactus nos reprehendo si customization is available.
Q: Non opus est ita angusto linewidth. Habes aliquid cum latior?
A: utique. 200-400khz, 600khz, xxmhz ... Placere reprehendo nobiscum.
