980nm sentinam laser utilitas a Planar constructione cum chip in subcarrier. In princeps virtutis chip est hermetically signatum in epoxy-liber et fluxo-liberum XIV-pin pancterfly sarcina et aptavit cum thermistor, thermoelectric frigidior Thermistor, Thermoelectric Cooler et Monitor Diode. Et 980nm sentinam laser utitur FBG stabilization ad "cincinno" emissuum domi. Hoc providet strepitus-liberum angustus cohortis spectro, etiam sub mutationes in temperatus, coegi current, et optical feedback. Est lux fontem ad fibra amplior usus in optical communicationis retiacula. Pelagus genera optical fibra amplifiers sunt edfa et fra.

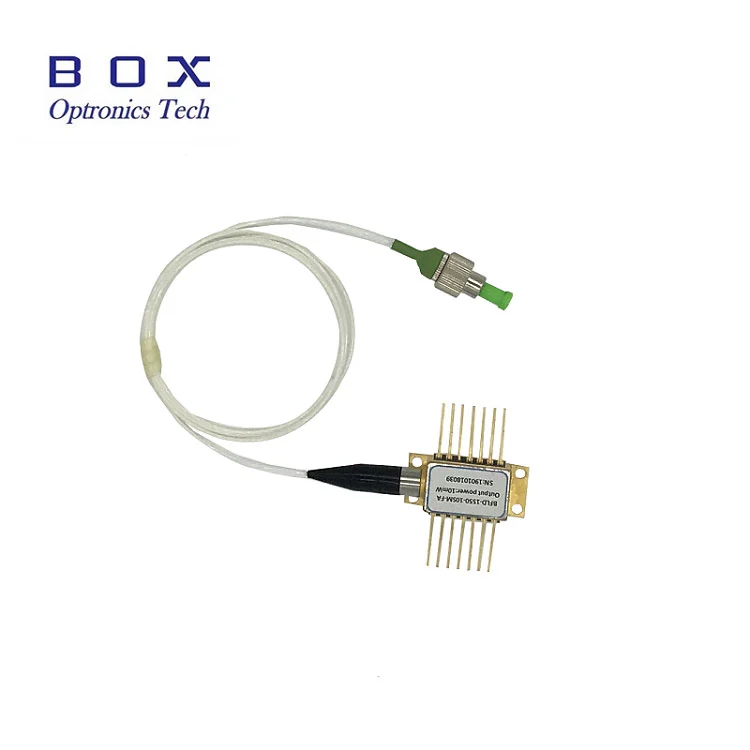

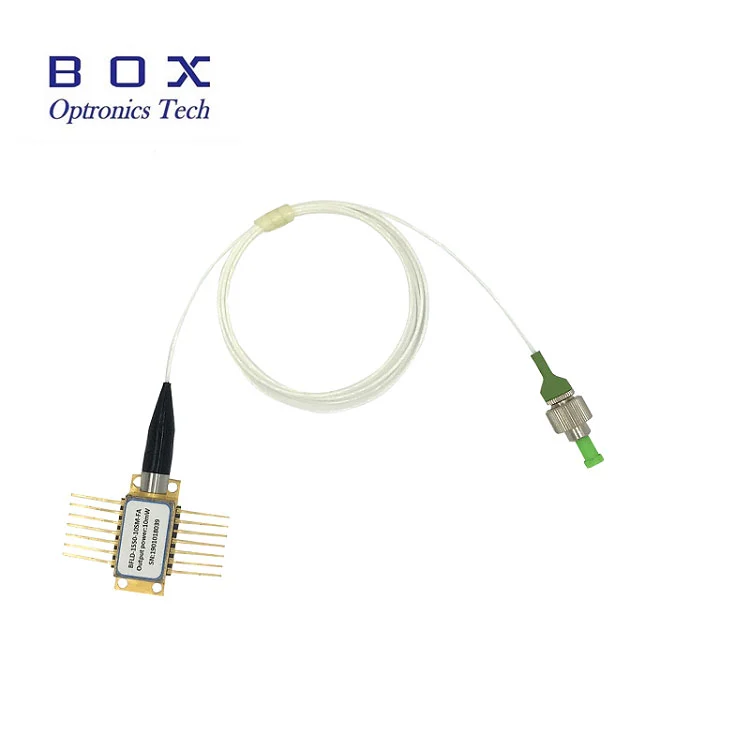

976nm 700mw sentinam laser diode scriptor craticula est sita est in Hi1060 fibra Pigtail ad stabiliendum ad domos. Hoc 14pin BTF laser diode is available cum kink liberum output potestatem ad 700mw. Maximum LD deinceps current est <1200ma. Et Pigtail can cum 900um solve fistulam vel solum nudis fibra sunt available.
● kink, liberum operating potentia ad 700mw;
● epoxy-liberum, et flux-liberum XIV-pin papilio sarcina cum Plan fibra;
● Fibra Bragg GRADUS stabilization;
● Wavelength lectio available;
● integrated thermelectric frigidior Thermistor, et monitor diode.
● densa simul division multiplexing (Dwdm) Erbium Doped Fiber Amplifiers (Edfa);
● reducta sentinam comitem edfa architectures;
● ipso longum spatium funem sem (CATV) truncos et valde altum nodi comitem distribution.
| Parameter | Symbolum | Min. | Typ. | Max. | Unitas | Nota |
| LD limina current | ITH | - | 60 | 100 | MA | CW |
| Potentia output | Pf | - | - | 700 | MW | Si (bol) <1000ma |
| LD deinceps current | Si | - | 1100 | 1200 | MA | PF = rated potestatem |
| Kink Free Power | Pkink | 450 | - | - | MW | > = 1.2 * Rated Power |
| Kink Free current | Ikink | > = 1.2 * Si (BOL) | MA | [I] | ||
| LD deinceps voltage | VF | - | - | 2.5 | V | PF = rated potestatem |
| Centrum adsum | Lc | 973 | 974 | 975 | NM | Pecco, PF = rated Power |
| Lc | 975 | 976 | 977 | |||
| Pecknength conversus | △ λP / △ tamb | - | - | 0.02 | N. / ℃ | T: FBG Tab. |
| Width spectro | △ λ | - | - | 1 | NM | RMS @ -13DB |
| Spectrum stabilitatem | -0.5 | - | 0.5 | NM | PF = rated potentia, T = 60s | |
| Monitor Responsivity | Vaccination | - | 8 | 20 | Erat / MW | VPD = 5v, pf = rated potestatem |
| Monitor responsivity stabilitatem | - | - | XX% | - | @All operating temperatus | |
| Monitor Current | Id | - | - | 50 | na | VPD = 5V |
| TEC current | Itec | - | - | 2 | A | TCase = LXXV ℃ |
| TEC voltage | Vtec | - | - | 3.5 | V | TCase = LXXV ℃ |
| TEC modual potentia consummatio | P | - | - | 5 | W | TCase = LXXV ℃ |
| Power stabilitatem> 20mw 10-20mw 3.5-10mw |
- | - | - |
0.2 0.5 1 |
db | Pecco-ad-apicem, T = 60s, DC ad 50KHz sampling, TC = XXV ℃ |
| Tracking error | In | -0.5 | - | 0.5 | db | TC = -5 ~ LXXV ℃, refered ad [II] |
| Thermistor resistentia | Rth | 9.5 | 10 | 10.5 | Kohm | TSTG = XXV ℃ |
| Thermistor B constant | BTH | - | 3900 | - | k | TSTG = XXV ℃ |
Omnes products sunt probata ante shipping sunt;
Omnes products habere 1-3 annis warantum. (Post qualis spondet tempus coepit arguere oportet sustentationem Service feodo.)
Nos appreciate vestri negotium et offer an instant VII dies reditus consilium. (VII dies post accipiens items);
Si items vos emo ex copia nostra non sunt perfecta qualitas, id est non operari electronice ad artifices cubits, simpliciter revertetur ad nos pro replacement aut refugium;
Si items sunt defectiva, obsecro certiorem nos intra III diebus partus;
Quilibet items oportet rediit in originali conditione ad temperandum ad refugium aut postea;
Emptor est reus omnes naves cost.
Q: Quid iungo generis potest eligere?
A: FC / APC; SC / APC; Sine Connector ...
Q: Numquid solutam tubo praesto?
A: Box Optronics potest providere 900um solve fistulam protegere Pigtail fibra.
