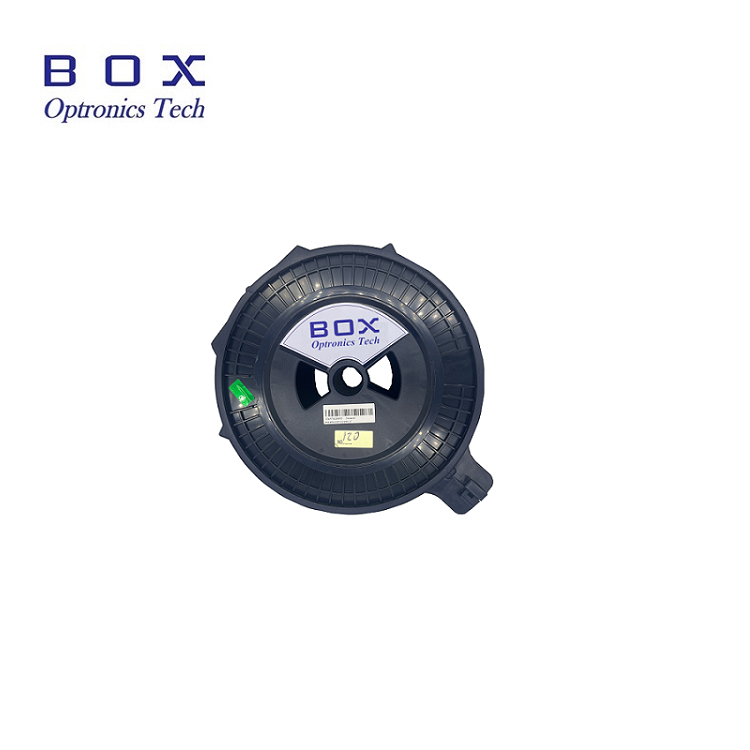

BoxOptronics High Absorption Erbium-Ytterbium Co-modum Fibrae Singulares fibrae maxime adhibentur in potentia telecom/CATV fibra amplificatoria, laser vndique, lidar, et laserarum oculi tuta. Fibra optica humilis iactura plicatilis et levis ad lucem conversionis efficientiam habet. Superioris effusio coefficiens output vim praestat et sumptus inferiores. Fibra optica absorptionem coefficientem ac spectrum cum bona constantia accommodare potest.
BoxOptronics High Absorption Erbium-Ytterbium Co-modum Fibrae Singulares fibrae maxime adhibentur in potentia telecom/CATV fibra amplificatoria, laser vndique, lidar, et laserarum oculi tuta. Fibra optica humilis iactura plicatilis et levis ad lucem conversionis efficientiam habet. Superioris effusio coefficiens output vim praestat et sumptus inferiores. Fibra optica absorptionem coefficientem ac spectrum cum bona constantia accommodare potest.
Series concentrationis doping, fibris amplificantibus cum diversis requisitis apta;
Princeps constantiae et stabilis effectus.
Fibra optica amplificans;
Lidar;
Villi laser.
| Pars nulla: | BEYDF-SM-6/125H | BEYDF-SM-10/125H | BEYDF-SM-12/130H |
| operating adsum | 1530-1625nm | 1530-1625nm | 1530-1625nm |
| Core Numerical Apertura | 0.2±0.02 | 0.12±0.02 | 0.12±0.02 |
| Numeralis apertura cladding | â¥0.46 | â¥0.46 | â¥0.46 |
| Cladding attenuation@1095nm | <30dB/km | <30dB/km | <30dB/km |
| Abscise adsum | â¤1450nm | - | - |
| Core effusio@1535nm | 60.0±15.0 dB/m | 85.0±25.0 dB/m | 85.0±25.0 dB/m |
| effusio Cladding@915nm | 1.0±0.25 dB/m | 3.0±0.5 dB/m | 3.0±0.5 dB/m |
| Diameter Core | 6.0±0.5μm | 10.0±1.0μm | 12.0±1.5μm |
| Diameter interior cladding | 125.0±3.0μm | 125.0±3.0μm | 130.0±3.0μm |
| Interiorem cladding figura | Octagon | Octagon | Octagon |
| Diameter coating | 245.0±15.0μm | 245.0±15.0μm | 245.0±15.0μm |
| vi mechanica | â¥100kpsi(0.69GN/m2) | â¥100kpsi(0.69GN/m2) | â¥100kpsi(0.69GN/m2) |
| Exterior materia cladding | Humilis Refractivus Index Resinae | Humilis Refractivus Index Resinae | Humilis Refractivus Index Resinae |
All products have been tested before shipping out;
Omnes fructus 1-3 annos habent warantum.
Negotium tuum bene nos facimus, et consilium instanti offerimus 7 dierum. (7 dies post susceptionem omissa);
Si vasa quae ex copia nostra emptionis non sunt perfectae qualitatis, id est electronice ad fabricas specificationes operantur, simpliciter ea nobis redde ad substituendum vel refugium;
Si omissa sunt, quaeso certiorem nos intra III dies traditionis;
Quaelibet res in pristinum statum restitui debet ad vocandum refugium vel repositum;
Emptor reus est omnium navium emptarum.
A: C-band, L band, and C+L band wavelengths.
Q: Quid est necessitas potentiae output?A: Box optronics customize can according to your requirements.
