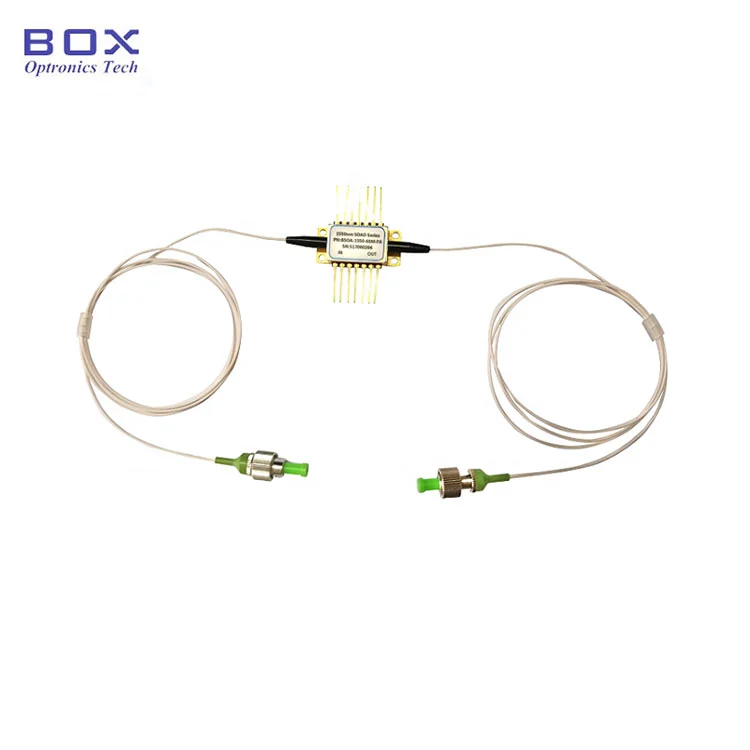

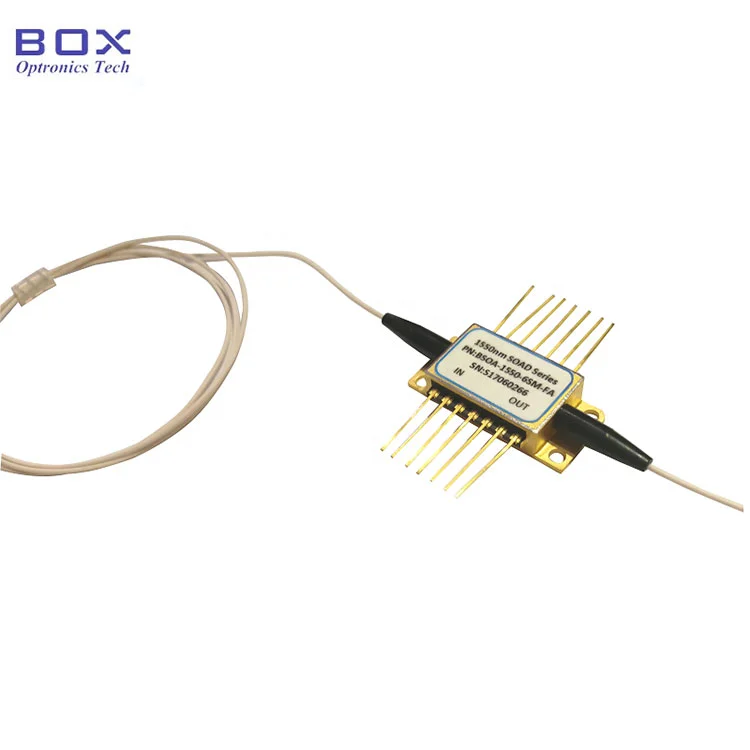

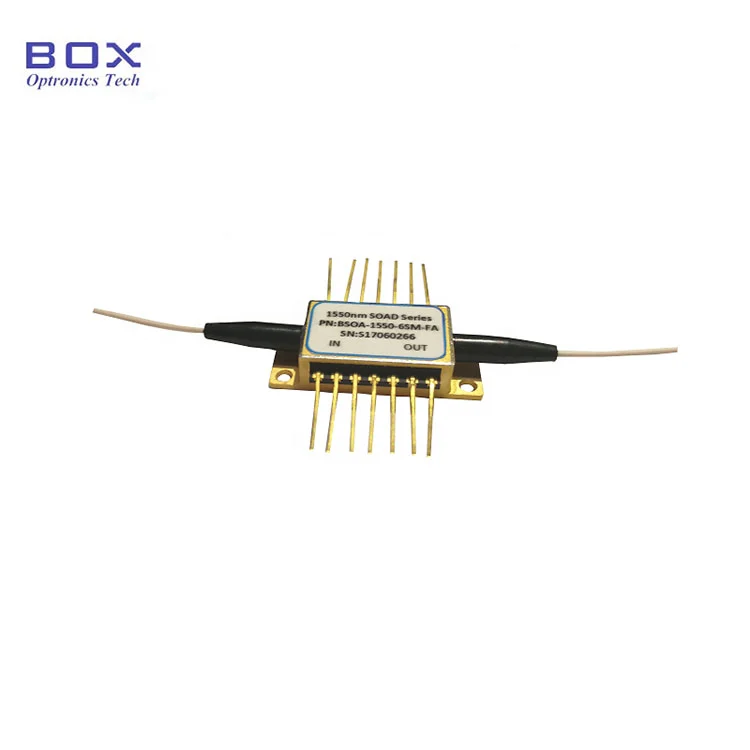

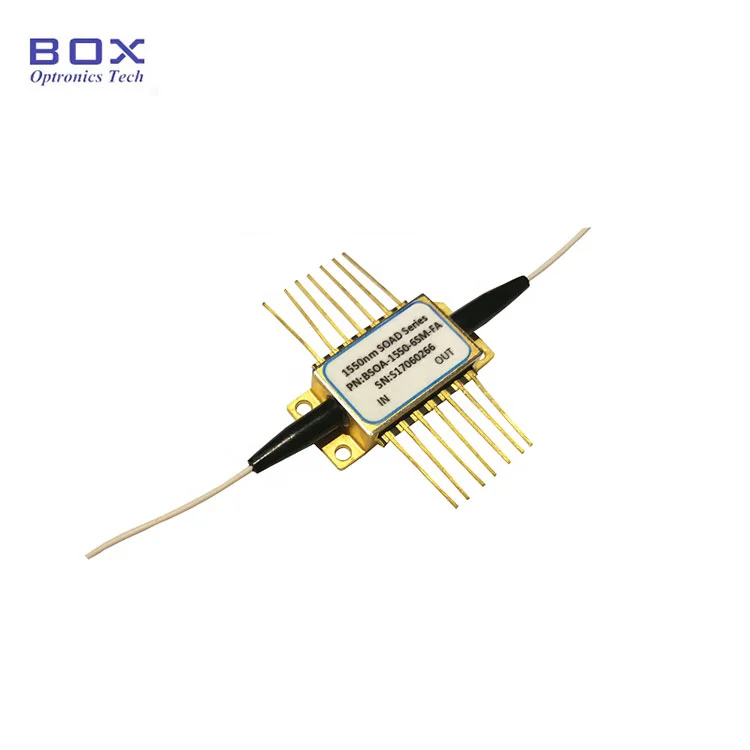

Quod 1550nm 25DB SOA Semiconductor optical AMPLIFICIUM uber series, est praesertim usus ad optical signum amplificationem et potest significantly auget in output optical potentia. Products pluma princeps lucrum, humilis potestatem Consummatio et Polarization sustentationem, inter alia characteres, et plene processable cum domestica controllable technology.
Quod 1550nm 25DB SOA Semiconductor optical AMPLIFICIUM uber series, est praesertim usus ad optical signum amplificationem et potest significantly auget in output optical potentia. Products pluma princeps lucrum humilis potentia consummatio, et polarization sustentationem, inter alia characteres, et plene processable cum domestice controllable technology.
● 40g et 100g c-cohortem interclusio shutter et modulation;

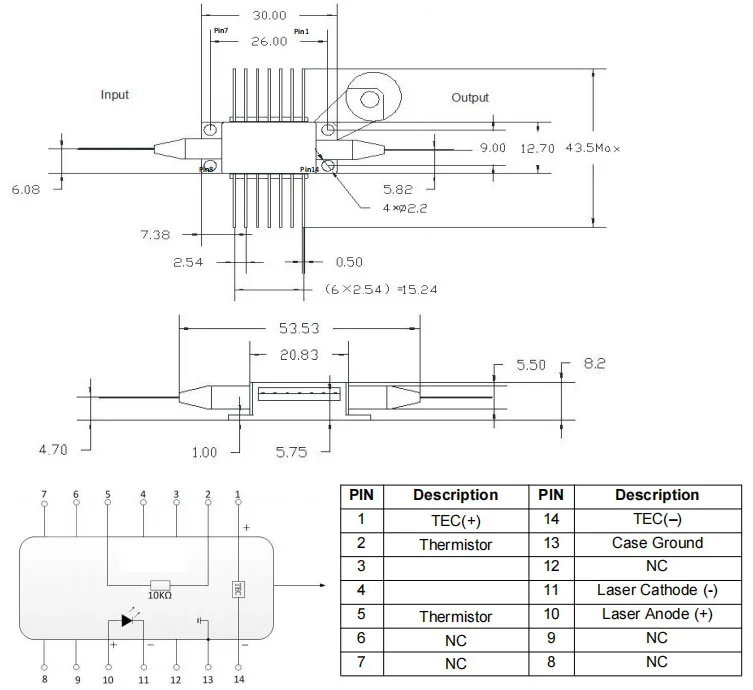

● 14pin papfus Package;
● Minimum sonitus & humilis polarization dependentia;
● PM1550 fibra cum FC / APC COPISTER.
● Reliability: Telcordia gr-CDLXVIII. Rohs
● damnum ultricies fibra optical nexu et switch
● WDM fibra optical networks;
● Mopa (Magister Oscilator Power Amplifier) laser;
| Parameter | Symbolum | Conditio | Min. | Typ. | Max. | Unitas |
| Operating domicilii | lpeak | XXV ℃, pin = 0DBM | - | 1550 | - | NM |
| ASE Center WAVLELENTER | fiat | XXV ℃, si = 1000ma | - | 1490 | - | NM |
| -3DB lucrum Bandwidth | Δl | Pin = -10dbm, si = 1000ma | - | 100 | - | NM |
| Saturation Optical Power | Pmax | Si = 1000MA, Pin = 5dbm @ 1550NM |
- | 23 | - | DBM |

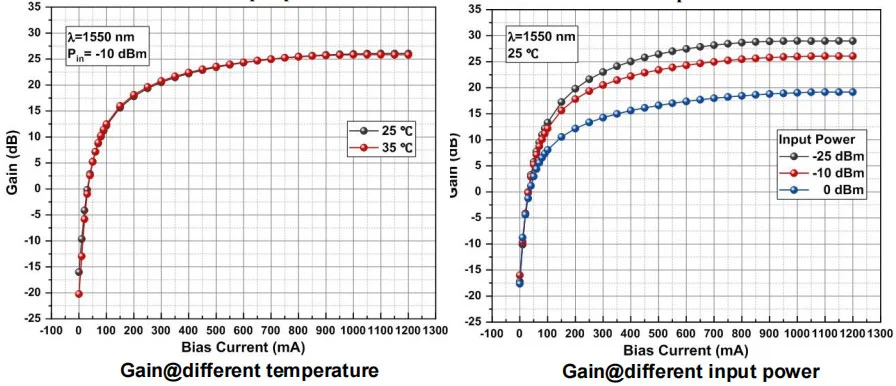

| Parvus signum quaestum | Ssg | Si = 1000MA, Pin = -25DBM @ 1550NM |
30 | 35 | - | db |
| Operating current | Si | - | - | 1000 | 1200 | MA |
| Deinceps voltage | VF | - | - | 2.4 | 2.6 | V |
| Strepitus | Nf | XXV ℃, si = 1000MA, 1550nm @ | - | 6 | 8 | db |
| Shutdown exstinctio ratio | Est | Si = 1000MA / si = 0MA: PIN = 0DBM |
- | 35 | - | db |
| TEC current | ltec | - | - | - | 1.8 | A |
| TEC voltage | Vtec | - | - | 400 | 3.4 | V |
| Thermistor resitance | Rtertherm | T = XXV ℃ | 9.5 | 10 | 10.5 | Kω |
| Thermistor current | ltherm | - | -2 | - | 5 | MA |
| Summa | P | - | - | - | 4 | w |
| Operating casus temperatus | Top | I si | -10 | - | 70 | ℃ |
| Storage temperatus | Ty | - | -40 | - | 85 | ℃ |
Omnes products sunt probata ante shipping sunt;
Omnes products habere I annis warantum. (Post qualis pignus tempus coepit arguere oportet sustentationem Service feodo.)
Nos appreciate vestri negotium et offer an instant VII dies reditus consilium. (VII dies post accipiens items);
Si items vos emo ex copia nostra non sunt perfecta qualitas, id est non operari electronice ad artifices cubits, simpliciter revertetur ad nos pro replacement aut refugium;
Si items sunt defectiva, obsecro certiorem nos intra III diebus partus;
Quilibet items oportet rediit in originali conditione ad temperandum ad refugium aut postea;
Emptor est reus omnes naves cost.
Q: Quid est adsum opus?
A: Habemus 1550nm 1310nm 1270nm 1060NM SOA laser Diode.
Q: Quid est postulationem ad output potestatem?
A: Box Optronics potest customize secundum tuum elit.
