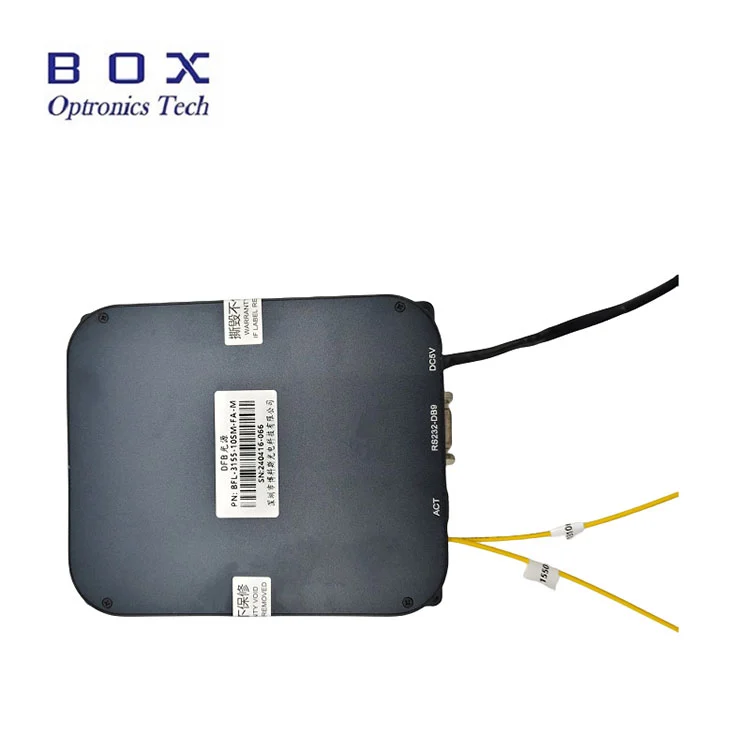

Et Semiconductor optical Ampliffier (SoA) Product series, quod praesertim usus ad optical signum amplificationem et potest significantly auget output optical potentia. Products pluma princeps lucrum humilis potentia consummatio, et polarization sustentationem, inter alia characteres, et plene processable cum domestice controllable technology.
Et Semiconductor optical Ampliffier (SoA) Product series, quod praesertim usus ad optical signum amplificationem et potest significantly auget output optical potentia. Products pluma princeps lucrum humilis potentia consummatio, et polarization sustentationem, inter alia characteres, et plene processable cum domestice controllable technology.
● C. C + Blocking Lorem vel modulation;
● Minimum sonitus & humilis polarization dependentia;
● module aut Benanchtop Package.
● damnum ultricies fibra optical nexu et switch;
● WDM fibra optical networks;
● Mopa (Magister oscillator potentia amplifier) laser.
| Parameter | Unitas | Values | Nota |
| Operating domicilii | λpeak | 1560nm | XXV ℃, pin = -10dbm |
| -3DB lucrum Bandwidth | Dl | > 120nm | Pin = -10dbm |
| Saturation Optical Power | Pmax | 13dbm | Si = 300MA, Pin = 5DBM @ 1550NM |
| Parvus signum quaestum | Ssg | 30db | Si = 300MA, pin = -25DBM @ 1550NM |
| Polarization dependens lucri | Ceo | 6db | XXV ℃, si = 300MA |
| Operating current | Si | <500ma | XXV ℃, si = 300MA, pin = -10DBM |
| Strepitus | Nf | ≤7db | - |
| Illuminationes exstinctio Ratio1 | Is1 | 55 | Si = 300MA, si = 0MA, pin = 0DBM |
| Averte exstinctio ratio2 | Er2 | 70 | Si = 300MA, si = -5ma, pin = 0DBM |
| Iungo | - | FC / APC | - |
| Fibra typus | - | SMF, XXVIII / PM1560 | - |
| Dimensiones | mm | CL (W) × CXXV (d) × XX (h) | Modulus |
| POPULUM | V | DC 5V / 4a, <15W | Modulus |
| Operating temperatus | ℃ | -5 ~ LV | - |
| Storage temperatus | ℃ | -40 ~ LXXXV | - |

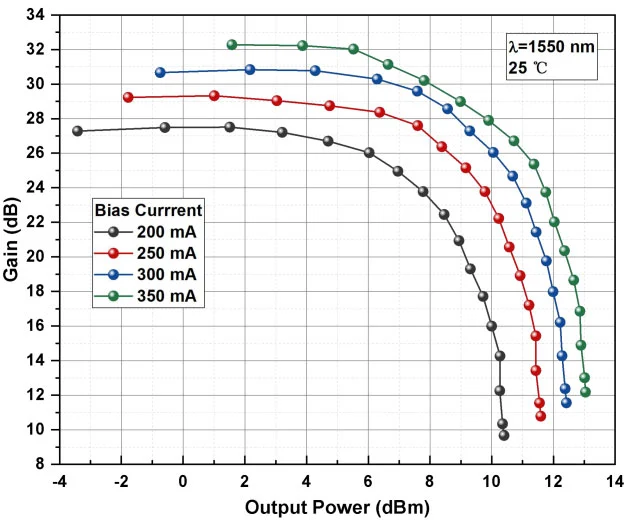

Power vs. output

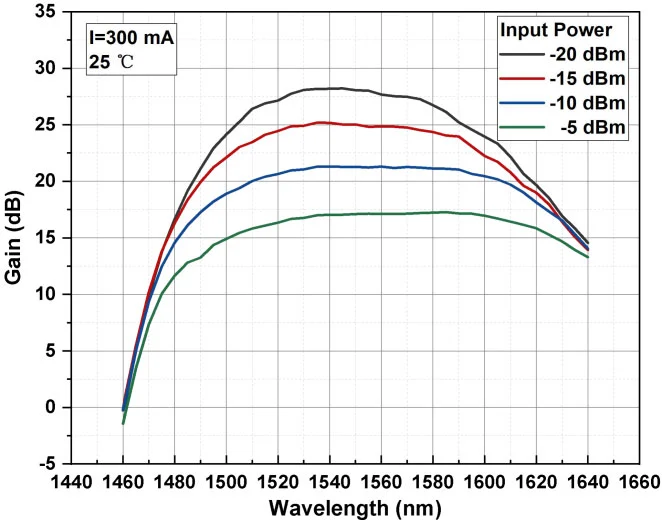

Lucrum spectro

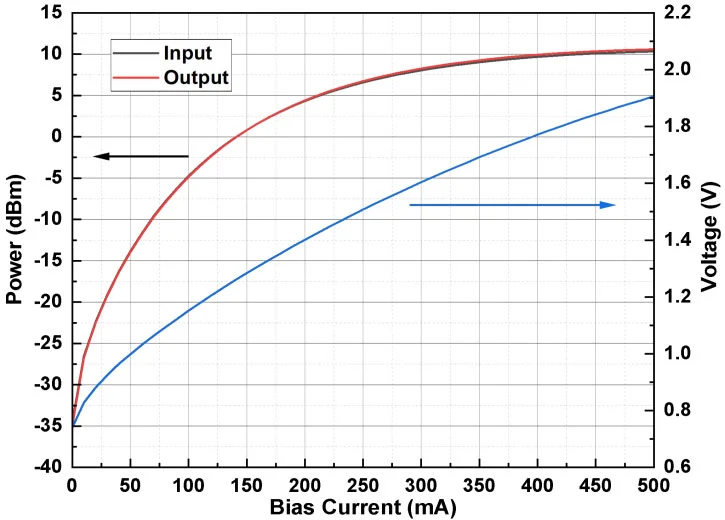

Power vs. output
Lucrum spectro

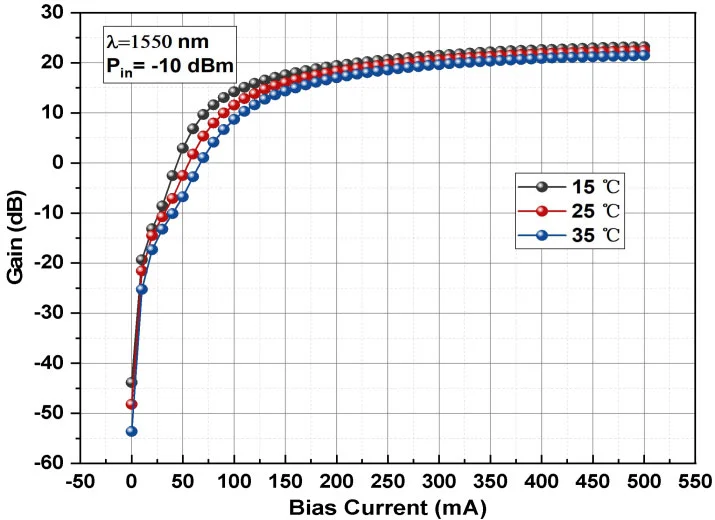

Lucrum @ diversis temperatus

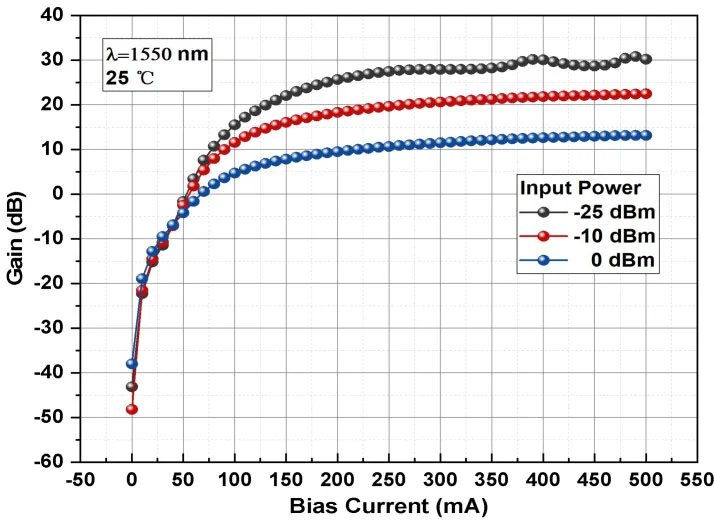

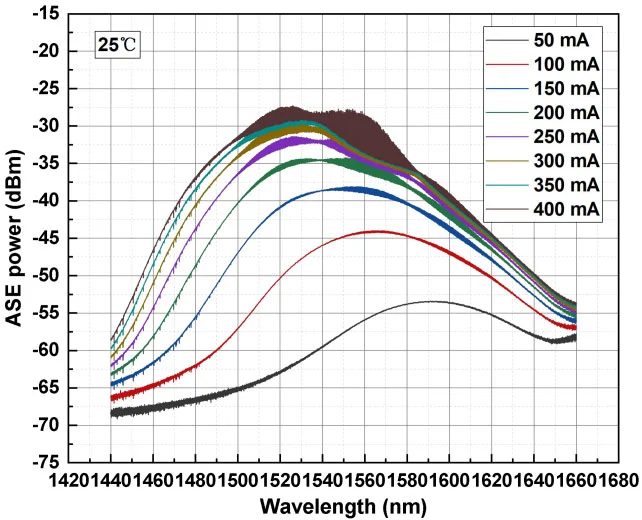

Power @ diversis adipiscing
Omnes products sunt probata ante shipping sunt;
Omnes products habere I annis warantum. (Post qualis pignus tempus coepit arguere oportet sustentationem Service feodo.)
Nos appreciate vestri negotium et offer an instant VII dies reditus consilium. (VII dies post accipiens items);
Si items vos emo ex copia nostra non sunt perfecta qualitas, id est non operari electronice ad artifices cubits, simpliciter revertetur ad nos pro replacement aut refugium;
Si items sunt defectiva, obsecro certiorem nos intra III diebus partus;
Quilibet items oportet rediit in originali conditione ad temperandum ad refugium aut postea;
Emptor est reus omnes naves cost.
Q: Quid pigtail fibra potes providere?
A: SMF-XXVIII et PM1560. Si alii fibris non opus, placere reprehendo nobiscum.
Q: Non vis moduli sarcina.
A: 14pin BTF sarcina is available.
