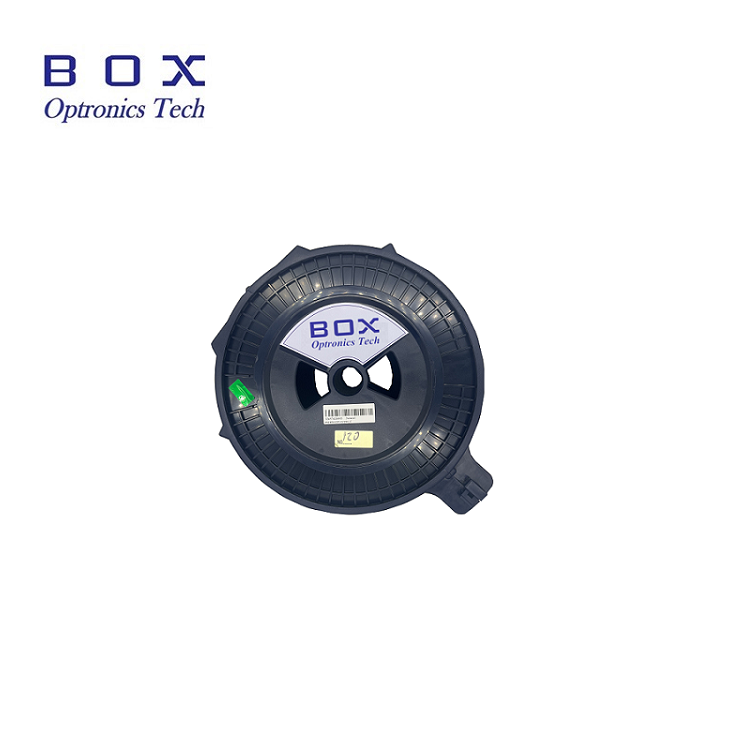

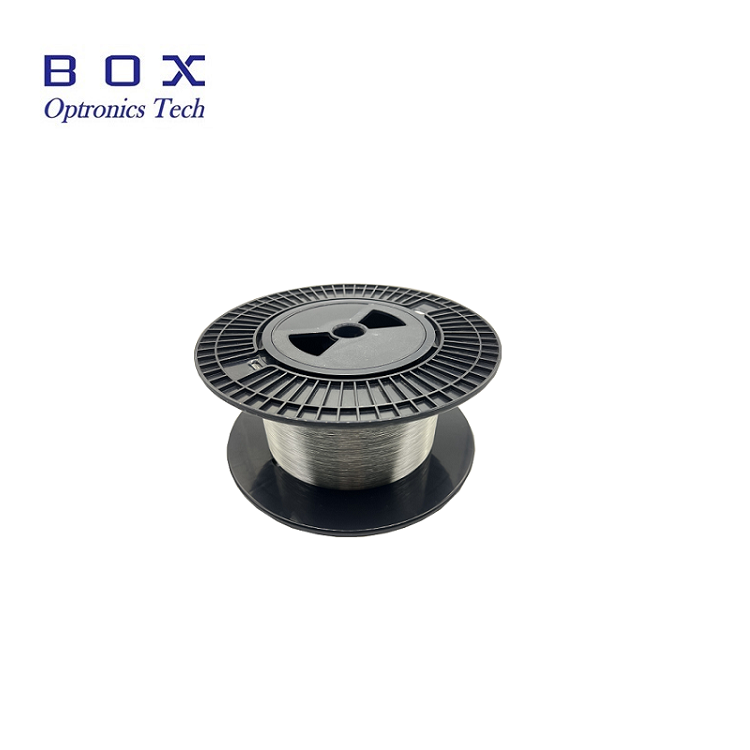

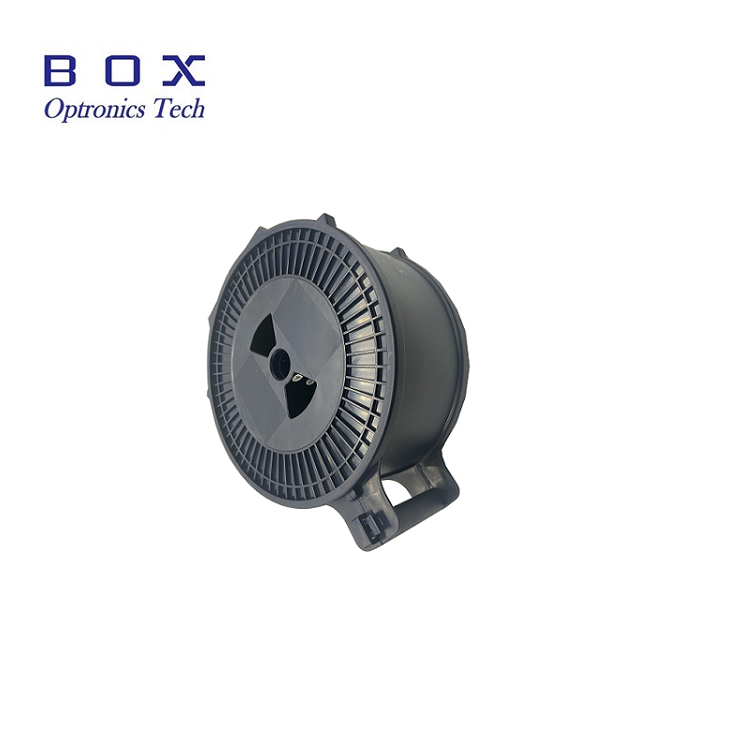

Et continua duplex-vesti Ytercium-Doped fibra est disposito medium et altus potestate continua alimentorum fibra lasers et amplifiers. Fibra habet proprietatibus magnam modus agro area, prope una-modus output, princeps fastigio efficientiam, altum modus instabilitatem limen et low photon obscurans. Potest adhiberi 500-6000W continua alimentorum fibra lasers et amplifiers, et applicantur ad medicinae et industriae materia dispensando.
Boxoptronics pulsus series duplex-vesti Yterbium-Doped optical fibra est disposito medium et humilis potentia pulsus laser semen fontem et pre-ampli. Hoc series optical fibris habet proprietates prope unum-mode tradenda, humilis flexione damnum, low photon obscurationem et excelsum fastigio efficientiam. Potest esse in 10-500W pulsus fibra lasers et applicantur in medicinae et industriae materia dispensando.
Large modus regio;
Facile ad consequi prope una-modus output;
Altus modus instabilitatem limine et low photon obscurans effectus.
Princeps virtutis C. alimentorum fibra laser;
Material processus.
| Parte non: | Mundi-XIV / CCL | Worldf, XX / CD | Worldf-XXV / CD | XXX-XXX / CD | XXX-XXX / DC |
| Operating domicilii | 1030-1100nm | 1030-1100nm | 1030-1100nm | 1030-1100nm | 1030-1100nm |
| Fibra core numerica aperturae | 0.070 ± 0.005 | 0.065 ± 0.005 | 0.060 ± 0.005 | 0.058 ± 0.003 | 0.060 ± 0.005 |
| Cladding numeralis aperturae | ≥0.46 | ≥0.46 | ≥0.46 | ≥0.46 | ≥0.46 |
| Cladding effusio @ 915nm | 0.75 ± 0.05 DB / M | 0.40 ± 0.05 DB / M | 0.60 ± 0.05 DB / M | 0.70 ± 0.20 DB / M | 0.40 ± 0.05b / m |
| Core attenuation @ 1200nm | ≤15.0db / km | ≤15.0db / km | ≤15.0db / km | ≤15.0db / km | ≤15.0db / km |
| Cladding Attenuation @ 1095NM | ≤15.0db / km | ≤15.0db / km | ≤15.0db / km | ≤15.0db / km | ≤15.0db / km |
| Core diameter | 14.0 ± 1.0 unum | 20.0 ± 1.5 | 25.0 ± 1.5 unum | 30.0 3.0 unum | 30.0 3.0 unum |
| Cladding diameter (latus-latus) | 250.0 ± 10.0um | 400.0 ± 10.0um | 400.0 ± 10.0um | 400.0 ± 10.0um | 600.0 ± 10.0um |
| Cladding figura | Octagon | Octagon | Octagon | Octagon | Octagon |
| CONCILIUS | 400.0 ± 15.0 unum | 15,0 550.0 | 15,0 550.0 | 15,0 550.0 | 750,0 ± 20.0 unum |
| Mechanica fortitudinem | ≥100kpsi | ≥100kpsi | ≥100kpsi | ≥100kpsi | ≥100kpsi |
| Externa cladding materiales | Humilis refractive index resinae | Humilis refractive index resinae | Humilis refractive index resinae | Humilis refractive index resinae | Humilis refractive index resinae |
| Matrix materiales | quartz | quartz | quartz | quartz | quartz |
Omnes products sunt probata ante shipping sunt;
Omnes products habere 1-3 annis warantum. (Post qualis spondet tempus coepit arguere oportet sustentationem Service feodo.)
Nos appreciate vestri negotium et offer an instant VII dies reditus consilium. (VII dies post accipiens items);
Si items vos emo ex copia nostra non sunt perfecta qualitas, id est non operari electronice ad artifices cubits, simpliciter revertetur ad nos pro replacement aut refugium;
Si items sunt defectiva, obsecro certiorem nos intra III diebus partus;
Quilibet items oportet rediit in originali conditione ad temperandum ad refugium aut postea;
Emptor est reus omnes naves cost.
A: C cohortis, l cohortem, et C cohortem wavelengths.
Q: Quid est postulationem ad output potestatem?A: Box Optronics potest customize secundum tuum elit.
